How to setup a DuoPlus 300WR Router

This guide will show you how to setup your DuoPlus 300WR router. The basic setup is the same for most ADSL Routers, however may vary slightly for each model.

Step 1:

Obtain your Default Gateway (for more information, see How to obtain your Default Gateway)

Step 2:

Open your Internet Browser, such as Internet Explorer, Google Chrome, etc...

Step 3:

Enter your Default Gateway in the search bar of your internet Browser as seen below and press Enter.

Default Gateway

Step 4:

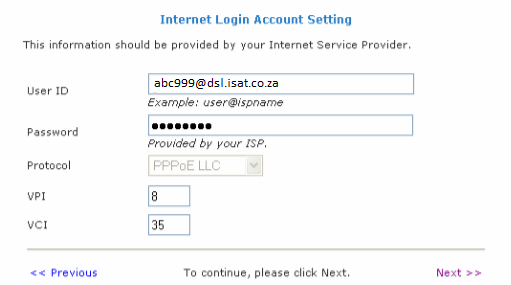

Internet Login Account Setting. This opens the Internet Login Account Setting page.

Internet Login Account Settings

Step 5:

Enter the User Name, Password, Protocol, VPI, and VCI for your account. These should be 8 and 35 for the Telkom network.

Step 6:

Click Next. This opens the Wireless LAN Configuration Page.

Wireless LAN Configuration

Step 7:

Enter an SSID, Country Standard, and Wireless Channel.

Step 8:

Select Yes or No to specify if you want to hide your wireless network name or not.

Step 9:

Click Next. This opens the System Password Page.

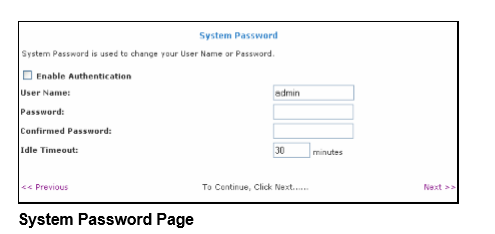

System Password Page

Step 10:

Select Enable Authentication then enter User Name, Password, and Confirm Password.

Step 11:

Click Next. This opens the Summary page.

Step 12:

Click Finish.

Step 13:

Click OK when a dialog box opens asking if you want to save and restart.

Step 14:

The router will take about two minutes to save the settings and establish a connection with your Internet service provider.

Once settings are saved, the Basic Home page opens to give you a summary of the account settings.

Should you need assistance setting up your DuoPlus 300WR Router, please feel free to call us on 086 123 4728.
